Setting up external readers for NFC time tracking

How to set up and connect an external NFC or RFID reader to your device

Jibble’s NFC time tracking kiosk helps ensure accurate and efficient time tracking with the use of NFC technology.

NFC kiosks can be set up through the Jibble mobile app or desktop app, allowing team members to clock in and out using NFC tags. If your device does not have built-in NFC support, you can connect a compatible external NFC/RFID reader.

This article covers:


Requirements and recommendations

Jibble’s NFC feature supports both RFID and NFC external readers. To get started, you’ll need to purchase an external reader and compatible NFC cards.

Read more to learn about the recommended external readers and NFC cards to purchase.

External Readers

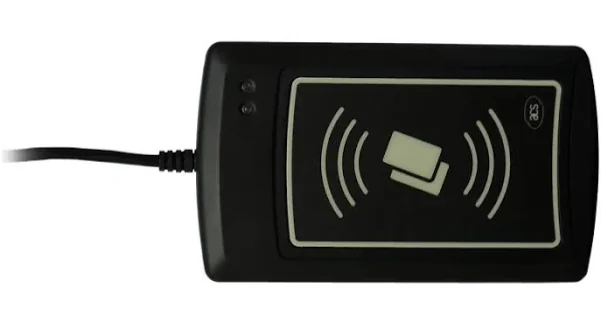

ACS ACR1281U-C2 External reader

Note: This reader requires initial configuration on a Windows computer before use.

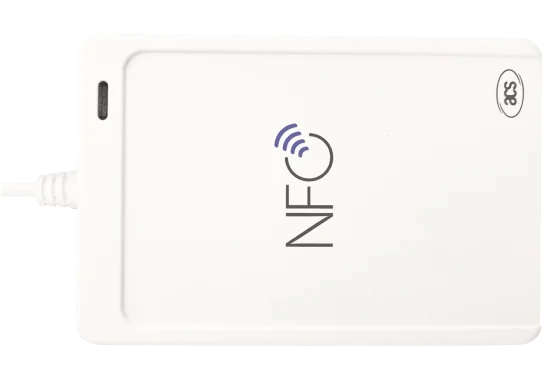

ACS ACR1552U-M1 External reader

Follow these steps to set up the external reader:

  1. Install the driver via this link.
  2. Download and unarchive the configuration utility here.
  3. Connect the reader to your computer’s USB port.

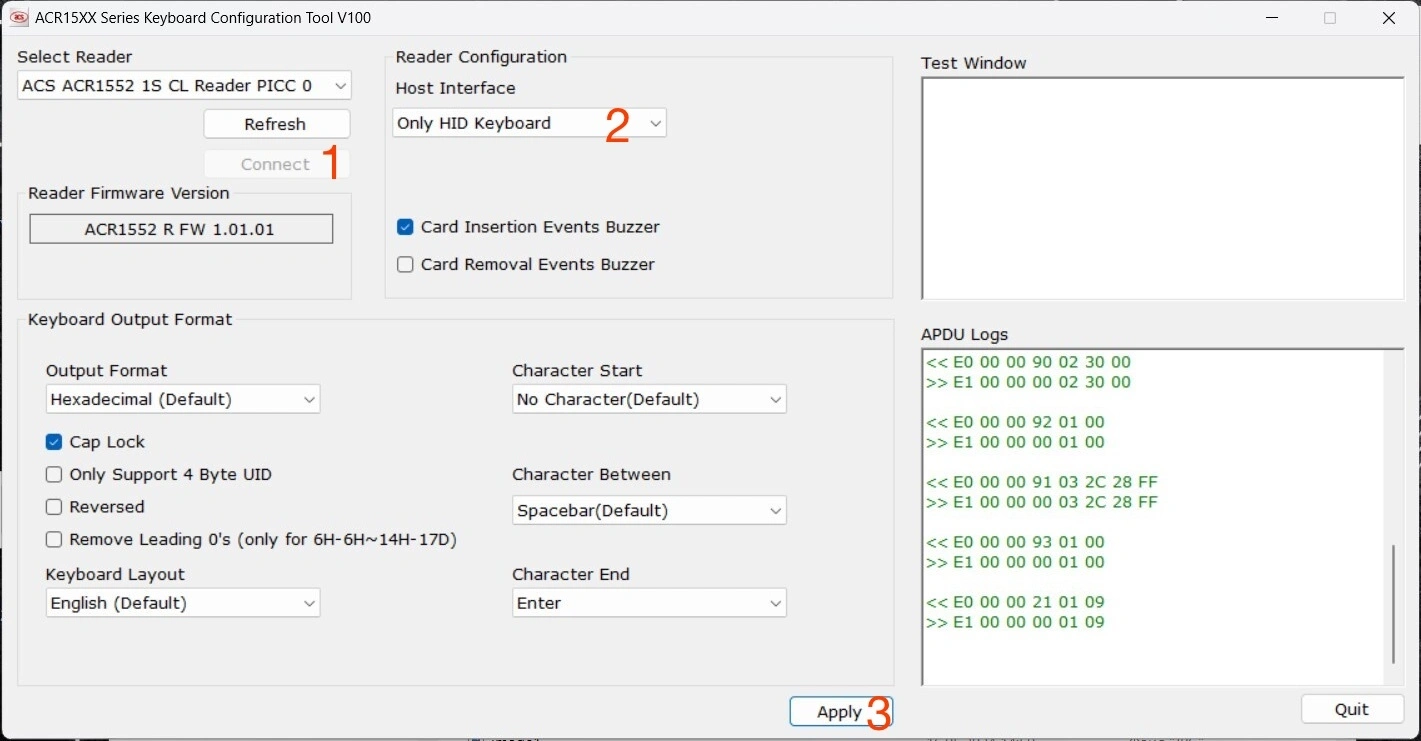

  4. Run the configuration utility.
  5. Select your reader from the list and click on the Connect button.
  6. In the Reader Configuration section, set the Host interface to Only HID Keyboard.Steps to configure acs external reader
  7. Click on the Apply button to complete the setup.
  8. Your reader can now be used with Jibble’s NFC kiosk mode on your mobile device or tablet.



Note: These external readers support MIFARE Classic NFC cards only.

External RFID/NFC reader

Adapters

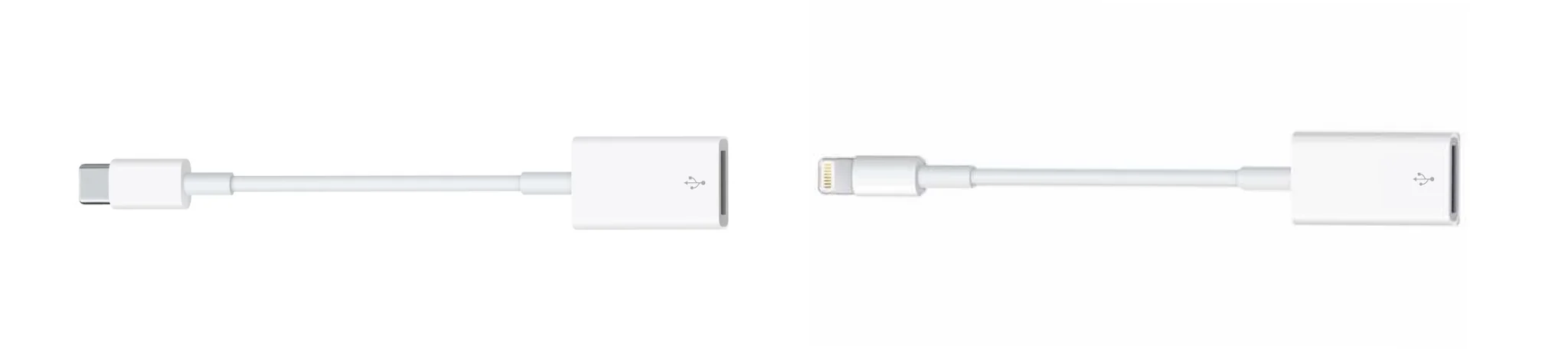

Most external readers come with a USB cable. You may need to purchase a USB-C or lightning adapter as shown below to connect the external reader to your device.

Adapters to connect external readers

NFC Cards/Tags

NFC cards come in various shapes and sizes, each containing a unique identifier that links to a specific user in Jibble.

For convenience, we recommend pre-initialized cards with ready-to-use unique identifiers. Here are our recommended options:

  • MIFARE Classic
  • MIFARE UltraLight
  • MIFARE Plus
  • MIFARE DESFire

Connecting external readers to your device

  1. Mobile app: Connect the NFC reader to your mobile device or tablet. If the reader uses a USB connection, you may need a Lightning or USB-C adapter. Follow the setup instructions provided with your reader.
  2. Desktop app: Connect the NFC reader to your computer’s USB port and follow the setup instructions provided with your reader.

Using NFC kiosk with external readers

Important ❗: The screen of your device must always be turned on (lit-up) in order for the external reader to be active.

On the Mobile App
  1. After you have connected your external reader to your device, open Jibble’s mobile app.
  2. Link team members to tags by adding an NFC tag.
  3. If you have not set up any kiosks, be sure to check out setting up kiosk mode.
  4. If you wish to use an existing kiosk, go to Menu > Switch to Kiosk > Select a Kiosk.
  5. Click on the cog icon on the top left corner to access Kiosk Settings.
  6. Select NFC Mode under the Kiosk settings section.Selecting NFC mode under kiosk settings
  7. Click on the back arrow on the top left corner to exit the kiosk settings screen.
  8. Tap the NFC tag onto the external reader.
  9. A confirmation message will be displayed on the kiosk once you are successfully clocked in.
  10. To clock out, simply tap your NFC tag onto the external reader a second time.
On the Desktop App
  1. Connect your NFC reader to your computer.
  2. Open the Jibble desktop app and launch your kiosk. If you have not set up any kiosks, check out using kiosk mode on Jibble’s desktop app.
  3. Ensure your kiosk is running in NFC Mode.
  4. Make sure team members have NFC tags assigned. Learn more about managing NFC tags on the desktop kiosk.
  5. Tap the NFC tag on the connected reader to clock in.
  6. A confirmation message will appear on the kiosk once the member is successfully clocked in.
  7. To clock out, members can tap their NFC tag on the reader again.
